Stone Facade System for Luxury Spa Center

Categories	Curtain Wall
Brand	PFM Architecture Service Provider
Model	Stone Facade System for Luxury Spa Center
Building Type	Spa & Wellness Center
Curtain Wall System	Stone Curtain Wall
Facade Area	Approximately 5,000 m²
Primary Structural System	Dry-Hanging Stone System & Partial Steel Support
Service Life	Over 50 Years
Structural Performance	Wind & Seismic Performance
Design Compliance	International Standards
Update Time	Sep 4,2025

Contact Now

Favorites

Detail Information

Quick Details

Stone Facade System for Luxury Spa Center

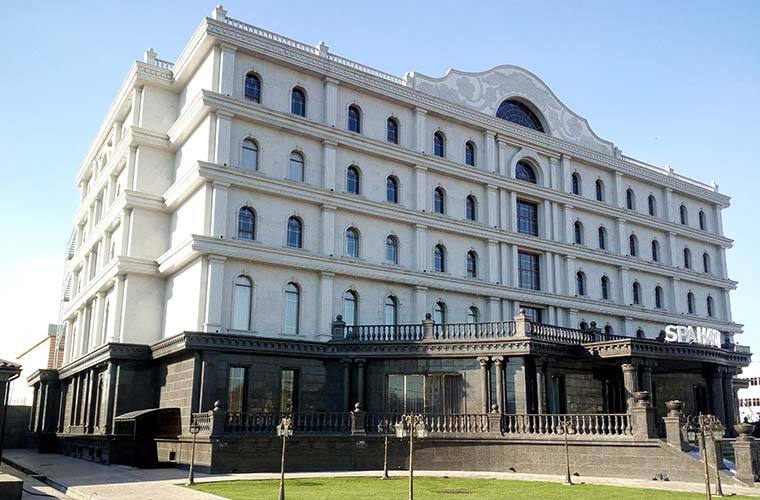

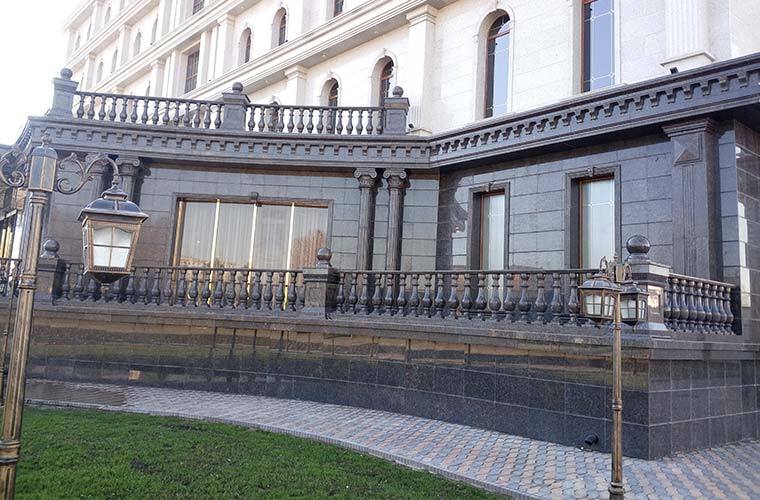

The project is the curtain wall system for the Spa Hayot luxury wellness center located in Dushanbe, Tajikistan, with a total façade area of approximately 5,000 square meters. High-end granite was selected as the primary exterior material, complemented by stone panels, columns, moldings, and sculptural elements to create a refined and artistic façade.

The overall design highlights the luxurious character of the spa while showcasing exceptional stone craftsmanship and construction efficiency, making it one of the most iconic high-end spa buildings in the region.

Building Type	Spa & Wellness Center
Curtain Wall System	Stone Curtain Wall
Facade Area	Approximately 5,000 m²
Structural System	Dry-Hanging Stone System with Partial Steel Support
Service Life	Over 50 Years
Design Standards	Compliant with international curtain wall standards, with reliable wind and seismic resistance

PROJECT TECHNICAL SOLUTION

Structural System

A combination of steel structure and dry-hanging stone curtain wall system ensures overall façade stability and long-term safety.

Curtain Wall Materials

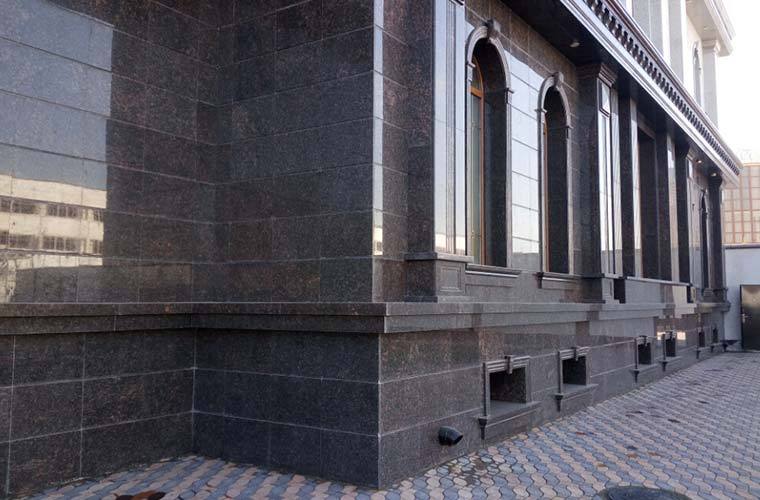

Granite Panels: Large-scale use of high-strength natural granite with polished and sandblasted finishes provides a balance of elegance and grandeur.

Curtain Wall Materials

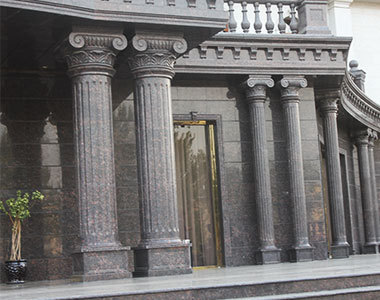

Stone Columns & Moldings: Carved columns and decorative stone lines enhance the façade’s depth and architectural character.

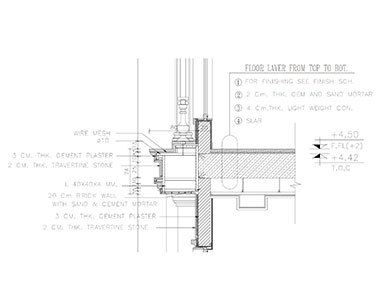

Joint Design

Standardized dry-hanging stone joints are used to ensure construction efficiency and ease of future maintenance.

PROJECT HIGHLIGHTS & ADVANTAGES

Natural Granite Facade

A modern combination of metal and glass materials delivers both aesthetic appeal and structural stability.

High Durability

Natural granite offers excellent compressive strength and resistance to weathering, ensuring long-term structural stability.

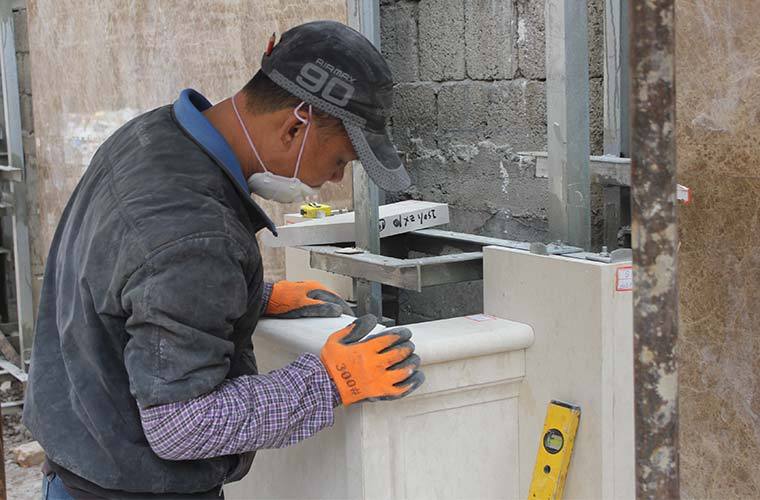

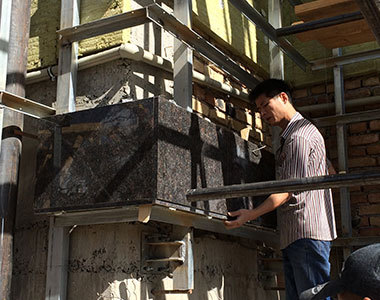

Precision Installation

International-standard dry-hanging techniques ensure accurate, safe, and visually refined installation.

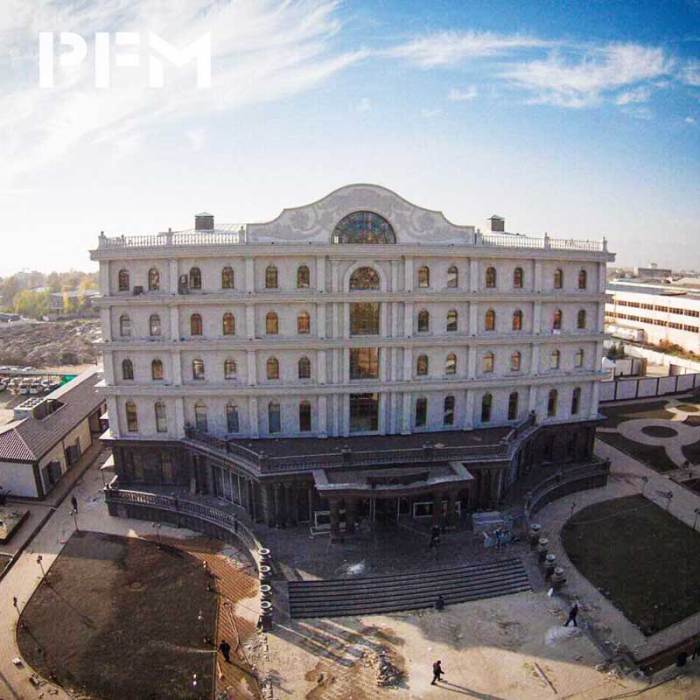

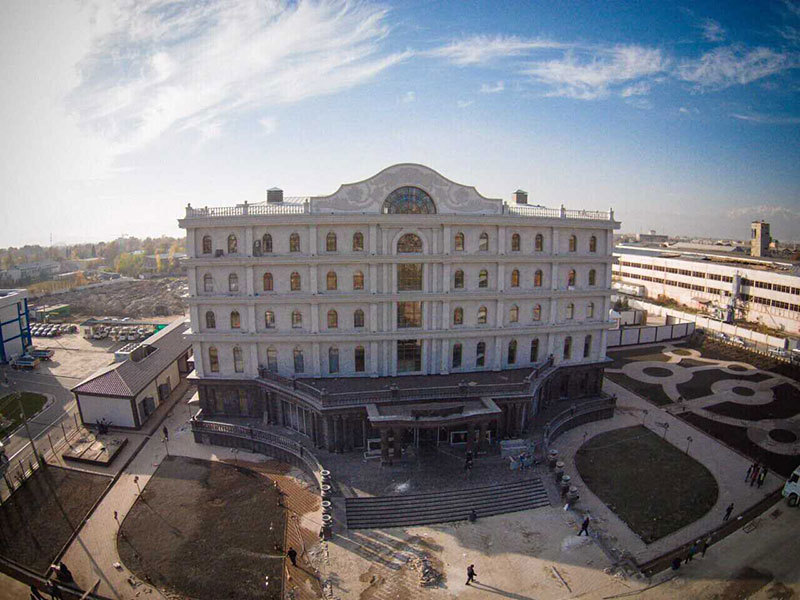

Iconic Spa Landmark

As one of the most prominent luxury spa centers in Tajikistan, the building enhances the city's image and architectural identity.

Why Choose PFM

Specialized Solutions For Your Project

With extensive international EPC experience, we provide PFM customized curtain wall solutions tailored to each project's functional, aesthetic, and architectural requirements—delivering efficient construction, iconic façades, and long-term performance you can trust.

We offer versatile curtain wall solutions tailored to your project's design, functional needs, and budget—flexible and customizable to fit any architectural vision.

A Variety of Combination Schemes
Curtain Wall Structural Systems: Unitized Curtain Wall、Stick (Framing) Curtain Wall、Point-Supported Curtain Wall、Steel Structure-Supported Curtain Wall
Curtain Wall Cladding Materials: Glass Curtain Wall、Aluminum Panel Curtain Wall、Double-Curved Aluminum Panel Curtain Wall、Stone Curtain Wall、Photovoltaic (PV) Curtain Wall
Combined Application Solutions
Steel Structure +	Aluminum Panel Curtain Wall	Strong load-bearing capacity with flexible shaping for complex and iconic facades.	Ideal for large public buildings like stadiums, exhibition centers, and cultural landmarks.
	Glass Curtain Wall	Combines structural strength with high transparency for a sleek, modern look.	Commonly used in high-rise office towers, airports, and commercial complexes.
Aluminum Panel +	Glass	Balances openness and shading while enhancing energy efficiency and visual depth.	Suitable for offices, tech parks, and buildings requiring both aesthetics and performance.
Curtain Wall +	Photovoltaic (PV) Integration	Integrates power generation with the facade, promoting sustainability and energy savings.	Ideal for green buildings, smart campuses, and government or public projects.
Other Customizable Parameters
Panel Thickness & Coating Types	Panel Thickness: Aluminum Panels (2–4 mm), Double-Curved Aluminum Panels (3–5 mm), Stone Panels (Composite 15–30 mm), Glass Panels (Single Layer 6–12 mm) Coating Types: PVDF (Fluorocarbon), Anodized, Powder Coating, Ceramic Coating
Structural Span & Facade Module Division	Unit Panel Width (0.8–1.5 m), Unit Panel Height (2.5–4.5 m), Structural Span (3–12 m+ with steel structure), Panel Division Types (Vertical / Horizontal / Diagonal / Freeform Curves)
Joint Types & Substructure Materials	Joint Types: Hook-on, Interlocking, Back-Bolt, Point-Fixed Substructure Materials: Aluminum Alloy Profiles, Stainless Steel (304/316), Hot-Dip Galvanized Steel
Wind Load & Seismic Performance Ratings	Standard Low-Rise Buildings (0.5–1.5 kPa), High-Rise Buildings (2.0–4.5 kPa), Super High-Rise / Special Buildings (e.g., Airports) (4.5–6.0+ kPa)
