Steel Structure Aluminum & Glass Curtain Wall for Commercial Plaza Podium

Categories	Curtain Wall
Brand	PFM Architecture Service Provider
Model	Steel Structure Aluminum & Glass Curtain Wall for Commercial Plaza Podium
Building Type	Large Commercial Plaza
Curtain Wall System	Steel Structure + Aluminum/Glass Hybrid Curtain
Facade Area	Approximately 40,000 m²
Primary Structural System	Steel Framework + Aluminum/Glass Panel Subframe
Service Life	Over 50 Years
Structural Performance	Wind & Seismic Performance
Design Compliance	International Standards
Installation Method	Hanging System
Update Time	Sep 4,2025

Contact Now

Favorites

Detail Information

Quick Details

STEEL STRUCTURE ALUMINUM & GLASS CURTAIN WALL FOR COMMERCIAL PLAZA PODIUM

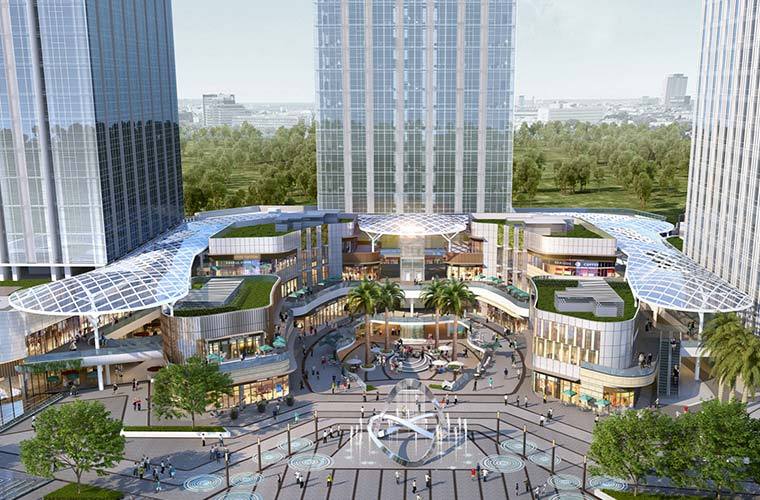

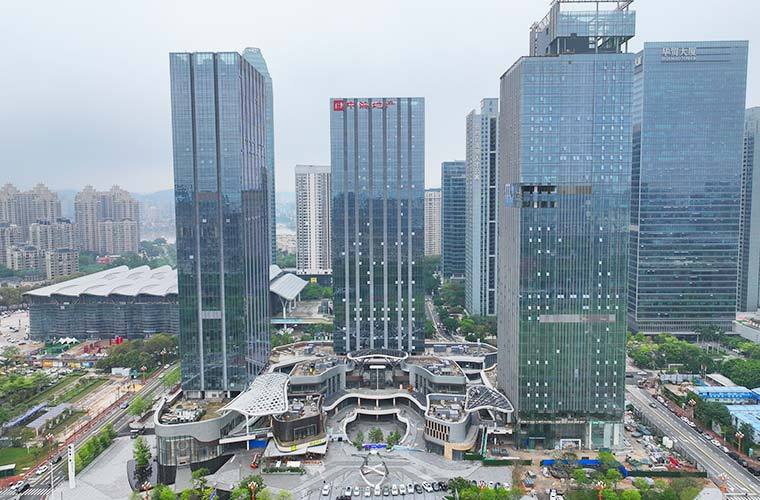

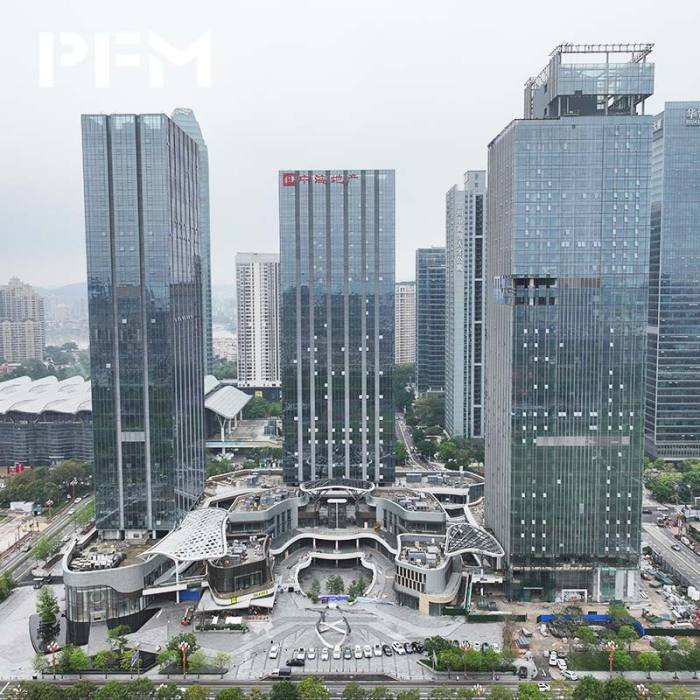

The project is located in the core business district of Huizhou, Guangdong Province, and involves the curtain wall system for the podium of a commercial plaza, with a total façade area of approximately 40,000 square meters. The curtain wall adopts a steel structural support system combined with customized aluminum panels and glass, creating a modern and open commercial space. The overall façade features smooth lines and rich layering, balancing architectural aesthetics with commercial functionality to deliver a comfortable, bright, and iconic urban environment.

Building Type	Large Commercial Plaza
Curtain Wall System	Steel Structure + Aluminum/Glass Hybrid Curtain Wall
Facade Area	Approximately 40,000 m²
Structural System	Steel Framework + Aluminum/Glass Panel Subframe and Hanging System
Service Life	Over 50 Years
Design Standards	Compliant with national and international curtain wall codes, with excellent wind and seismic performance

PROJECT TECHNICAL SOLUTION

Structural System

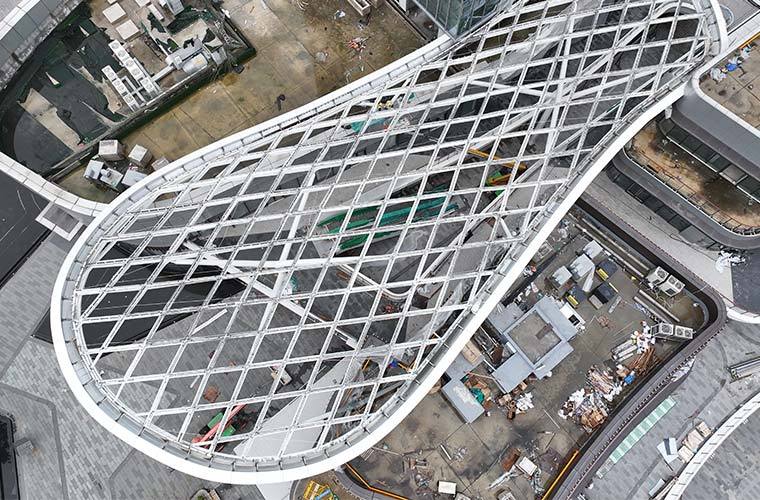

The main structure adopts a steel framework to ensure the stability and safety of the large-area curtain wall.

The subframe system uses aluminum alloy profiles and a concealed frame system, allowing for easy installation and future maintenance.

Curtain Wall Materials

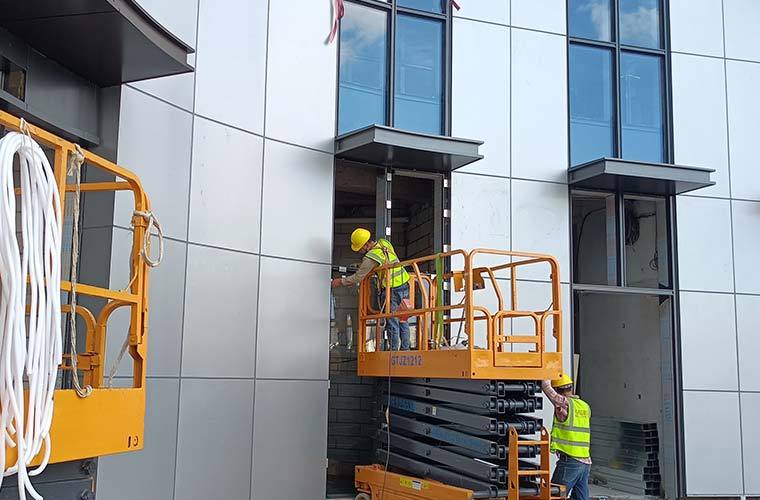

The facade is composed of a combination of aluminum panels and glass. The aluminum panels are 2.5–4.0 mm thick with a PVDF (fluorocarbon) coating.

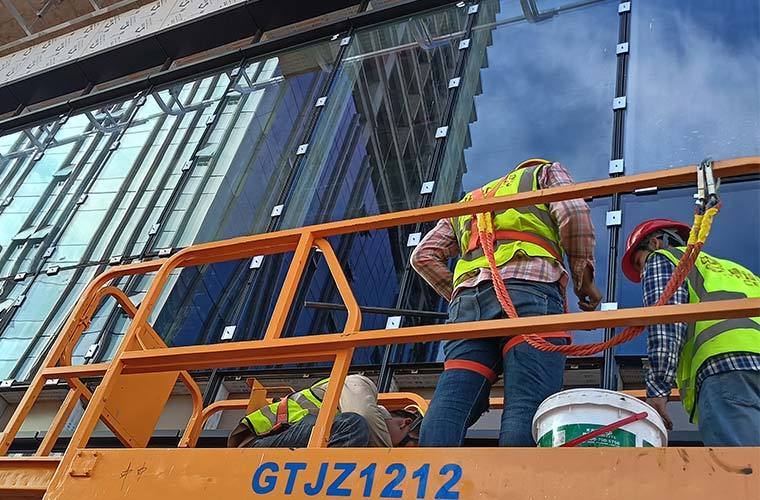

Glass panels are made of high-performance Low-E insulated glass, balancing natural lighting and energy efficiency.

Modular design ensures façade continuity and precision in construction.

PROJECT HIGHLIGHTS & ADVANTAGES

Large-Scale Structural Stability

The steel framework provides solid support, ensuring the safety and overall stability of the expansive podium curtain wall.

Modern Commercial Aesthetic

The combination of aluminum panels and glass creates a smooth, transparent façade with rich light and shadow effects, enhancing visual impact.

Energy Efficiency & Sustainability

High-performance Low-E glass and PVDF-coated aluminum panels improve energy efficiency while reducing operational and maintenance costs.

BIM-Driven Digital Construction

Modular prefabrication combined with precise on-site installation ensures seamless integration between the curtain wall system and the main structure.

Iconic Urban Presence

With its modern and distinctive façade design, the project establishes a new commercial landmark and enhances the overall image of the business district.

Why Choose PFM

Specialized Solutions For Your Project

With extensive international EPC experience, we provide PFM customized curtain wall solutions tailored to each project's functional, aesthetic, and architectural requirements—delivering efficient construction, iconic façades, and long-term performance you can trust.

We offer versatile curtain wall solutions tailored to your project's design, functional needs, and budget—flexible and customizable to fit any architectural vision.

A Variety of Combination Schemes
Curtain Wall Structural Systems: Unitized Curtain Wall、Stick (Framing) Curtain Wall、Point-Supported Curtain Wall、Steel Structure-Supported Curtain Wall
Curtain Wall Cladding Materials: Glass Curtain Wall、Aluminum Panel Curtain Wall、Double-Curved Aluminum Panel Curtain Wall、Stone Curtain Wall、Photovoltaic (PV) Curtain Wall
Combined Application Solutions
Steel Structure +	Aluminum Panel Curtain Wall	Strong load-bearing capacity with flexible shaping for complex and iconic facades.	Ideal for large public buildings like stadiums, exhibition centers, and cultural landmarks.
	Glass Curtain Wall	Combines structural strength with high transparency for a sleek, modern look.	Commonly used in high-rise office towers, airports, and commercial complexes.
Aluminum Panel +	Glass	Balances openness and shading while enhancing energy efficiency and visual depth.	Suitable for offices, tech parks, and buildings requiring both aesthetics and performance.
Curtain Wall +	Photovoltaic (PV) Integration	Integrates power generation with the facade, promoting sustainability and energy savings.	Ideal for green buildings, smart campuses, and government or public projects.
Other Customizable Parameters
Panel Thickness & Coating Types	Panel Thickness: Aluminum Panels (2–4 mm), Double-Curved Aluminum Panels (3–5 mm), Stone Panels (Composite 15–30 mm), Glass Panels (Single Layer 6–12 mm) Coating Types: PVDF (Fluorocarbon), Anodized, Powder Coating, Ceramic Coating
Structural Span & Facade Module Division	Unit Panel Width (0.8–1.5 m), Unit Panel Height (2.5–4.5 m), Structural Span (3–12 m+ with steel structure), Panel Division Types (Vertical / Horizontal / Diagonal / Freeform Curves)
Joint Types & Substructure Materials	Joint Types: Hook-on, Interlocking, Back-Bolt, Point-Fixed Substructure Materials: Aluminum Alloy Profiles, Stainless Steel (304/316), Hot-Dip Galvanized Steel
Wind Load & Seismic Performance Ratings	Standard Low-Rise Buildings (0.5–1.5 kPa), High-Rise Buildings (2.0–4.5 kPa), Super High-Rise / Special Buildings (e.g., Airports) (4.5–6.0+ kPa)
