Metal and Glass Curtain Wall for Commercial Complex

Categories	Curtain Wall
Brand	PFM Architecture Service Provider
Model	Metal and Glass Curtain Wall for Commercial Complex
Building Type	Commercial Complex
Curtain Wall System	Metal Curtain Wall + Glass Curtain Wall
Facade Area	Approximately 14,000 m²
Primary Structural System	Steel Support Structure
Structural System	Unitized/Stick Curtain Wall System
Service Life	Over 50 Years
Structural Performance	Wind & Seismic Performance
Design Compliance	International Standards
Update Time	Sep 4,2025

Contact Now

Favorites

Detail Information

Quick Details

COMMERCIAL COMPLEX METAL & GLASS FACADE SYSTEM

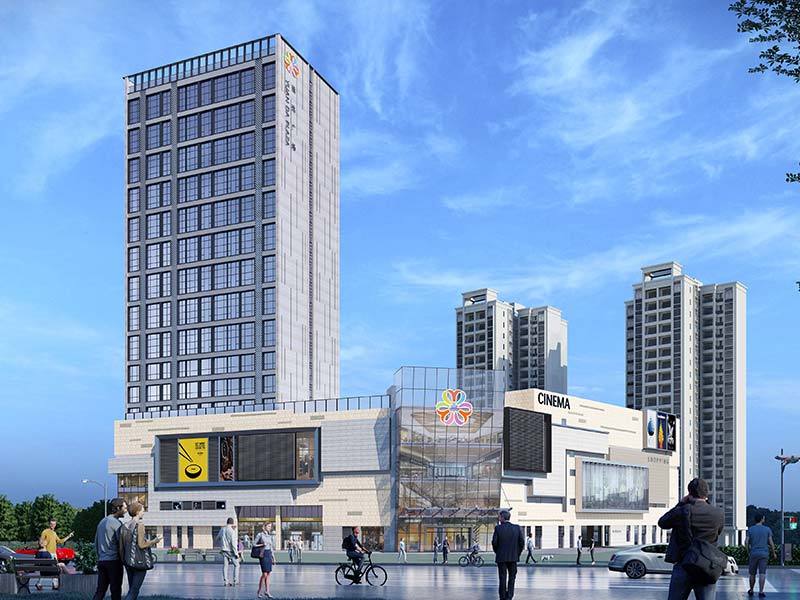

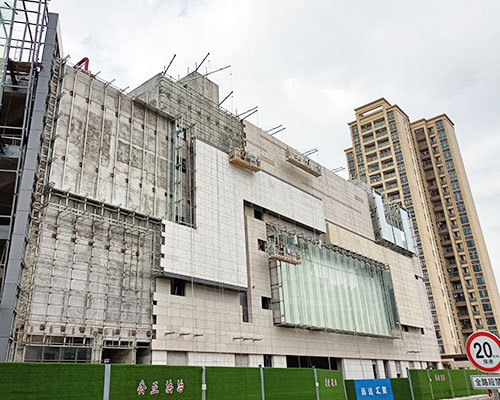

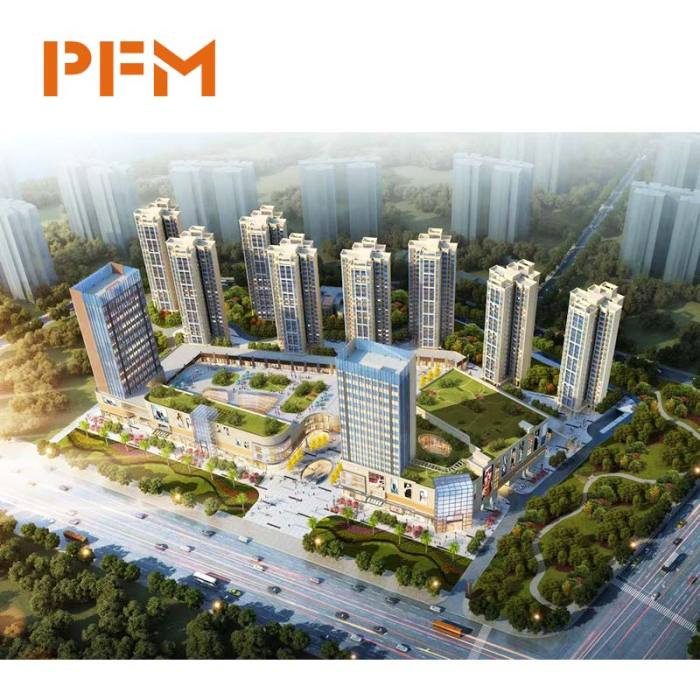

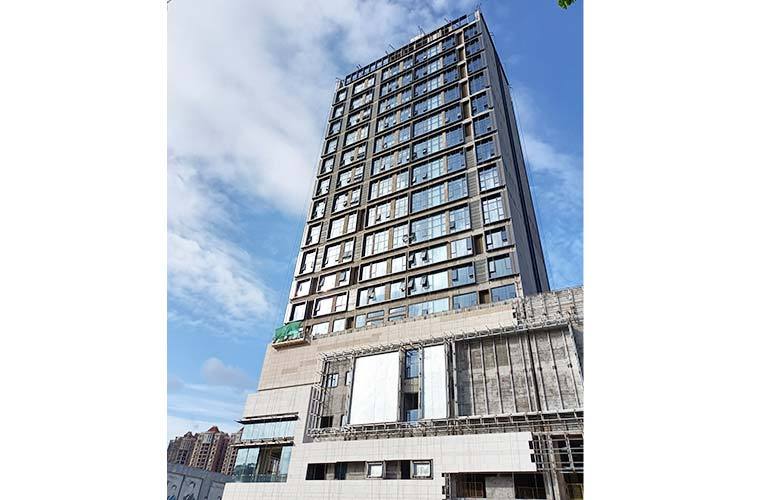

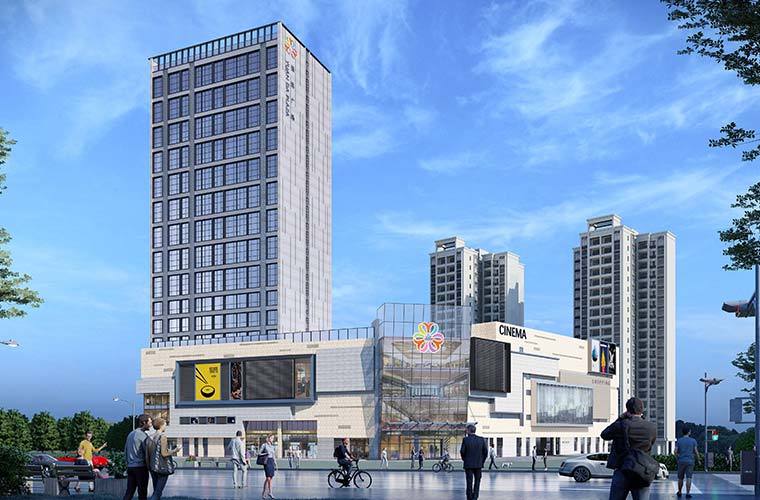

The project is a curtain wall system for a commercial complex located in Conghua District, Guangzhou, with a total façade area of approximately 14,000 square meters. The design combines metal panels with glass curtain walls, resulting in a clean, modern façade that reflects the openness and contemporary style of the commercial complex. The curtain wall system not only offers excellent durability and energy efficiency, but also creates a visually rich architectural appearance through the integration of multiple materials.

Building Type	Commercial Complex
Curtain Wall System	Metal Curtain Wall + Glass Curtain Wall
Facade Area	Approximately 14,000 m²
Structural System	Steel Support Structure + Unitized/Stick Curtain Wall System
Service Life	Over 50 Years
Design Standards	Compliant with national curtain wall codes, with reliable wind and seismic performance

PROJECT TECHNICAL SOLUTION

Structural System

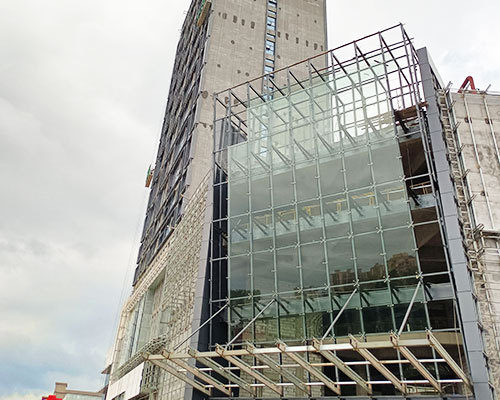

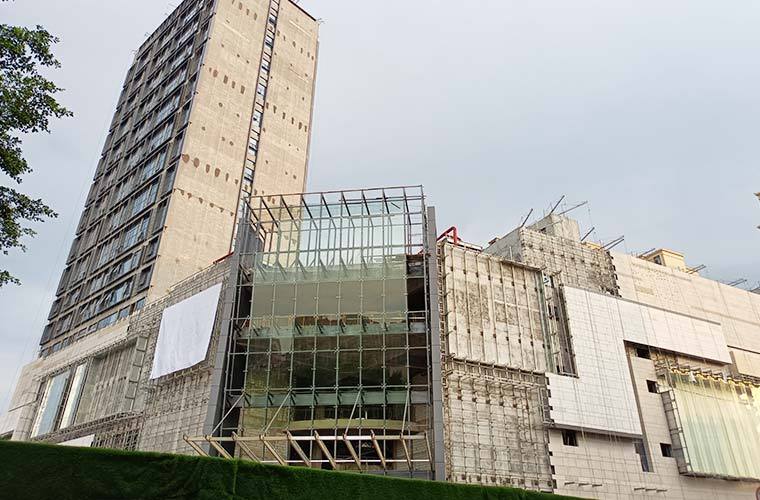

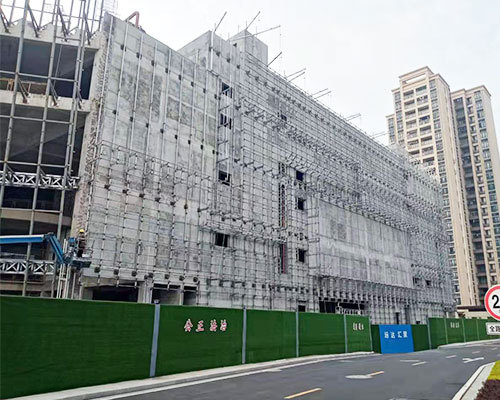

The building features a steel frame combined with partial concrete sections. The curtain wall system integrates unitized and stick systems for safety and efficient installation.

Glass Components

Double-glazed Low-E glass is used to provide excellent thermal insulation and natural lighting, enhancing the building’s overall energy performance.

Metal Components

High-strength aluminum alloy panels with PVDF (fluorocarbon) coating ensure outstanding weather resistance and long-term color stability.

PROJECT HIGHLIGHTS & ADVANTAGES

Integrated Curtain Wall System

A modern combination of metal and glass materials delivers both aesthetic appeal and structural stability.

High Energy Efficiency

Low-E insulated glass and aluminum panels help reduce energy consumption and improve indoor comfort.

Durability & Weather Resistance

PVDF-coated panels and insulated glazing ensure long-term performance against UV, corrosion, and color fading.

Commercial Landmark Impact

The sleek façade design enhances the project’s visibility and adds value to the surrounding business district.

Why Choose PFM

Specialized Solutions For Your Project

With extensive international EPC experience, we provide PFM customized curtain wall solutions tailored to each project's functional, aesthetic, and architectural requirements—delivering efficient construction, iconic façades, and long-term performance you can trust.

We offer versatile curtain wall solutions tailored to your project's design, functional needs, and budget—flexible and customizable to fit any architectural vision.

A Variety of Combination Schemes
Curtain Wall Structural Systems: Unitized Curtain Wall、Stick (Framing) Curtain Wall、Point-Supported Curtain Wall、Steel Structure-Supported Curtain Wall
Curtain Wall Cladding Materials: Glass Curtain Wall、Aluminum Panel Curtain Wall、Double-Curved Aluminum Panel Curtain Wall、Stone Curtain Wall、Photovoltaic (PV) Curtain Wall
Combined Application Solutions
Steel Structure +	Aluminum Panel Curtain Wall	Strong load-bearing capacity with flexible shaping for complex and iconic facades.	Ideal for large public buildings like stadiums, exhibition centers, and cultural landmarks.
	Glass Curtain Wall	Combines structural strength with high transparency for a sleek, modern look.	Commonly used in high-rise office towers, airports, and commercial complexes.
Aluminum Panel +	Glass	Balances openness and shading while enhancing energy efficiency and visual depth.	Suitable for offices, tech parks, and buildings requiring both aesthetics and performance.
Curtain Wall +	Photovoltaic (PV) Integration	Integrates power generation with the facade, promoting sustainability and energy savings.	Ideal for green buildings, smart campuses, and government or public projects.
Other Customizable Parameters
Panel Thickness & Coating Types	Panel Thickness: Aluminum Panels (2–4 mm), Double-Curved Aluminum Panels (3–5 mm), Stone Panels (Composite 15–30 mm), Glass Panels (Single Layer 6–12 mm) Coating Types: PVDF (Fluorocarbon), Anodized, Powder Coating, Ceramic Coating
Structural Span & Facade Module Division	Unit Panel Width (0.8–1.5 m), Unit Panel Height (2.5–4.5 m), Structural Span (3–12 m+ with steel structure), Panel Division Types (Vertical / Horizontal / Diagonal / Freeform Curves)
Joint Types & Substructure Materials	Joint Types: Hook-on, Interlocking, Back-Bolt, Point-Fixed Substructure Materials: Aluminum Alloy Profiles, Stainless Steel (304/316), Hot-Dip Galvanized Steel
Wind Load & Seismic Performance Ratings	Standard Low-Rise Buildings (0.5–1.5 kPa), High-Rise Buildings (2.0–4.5 kPa), Super High-Rise / Special Buildings (e.g., Airports) (4.5–6.0+ kPa)
