Home / All / Curtain Wall / Glass Curtain Wall for High-Rise Office Buildings

Glass Curtain Wall for High-Rise Office Buildings

Categories	Curtain Wall
Brand	PFM Architecture Service Provider
Model	Glass Curtain Wall for High-Rise Office Buildings
Building Type	High-rise Office Building
Curtain Wall System	Steel Structure + Glass Curtain Wall
Facade Area	Approximately 76,000 m²
Primary Structural System	Spatial Steel Framework + Glass Unitized
Service Life	Over 50 Years
Structural Performance	Wind & Seismic Performance
Design Compliance	International Standards
Update Time	Sep 4,2025

Contact Now

Favorites

Detail Information

Quick Details

LARGE-SPAN GRID POWER PLANT FOR POWER PLANT

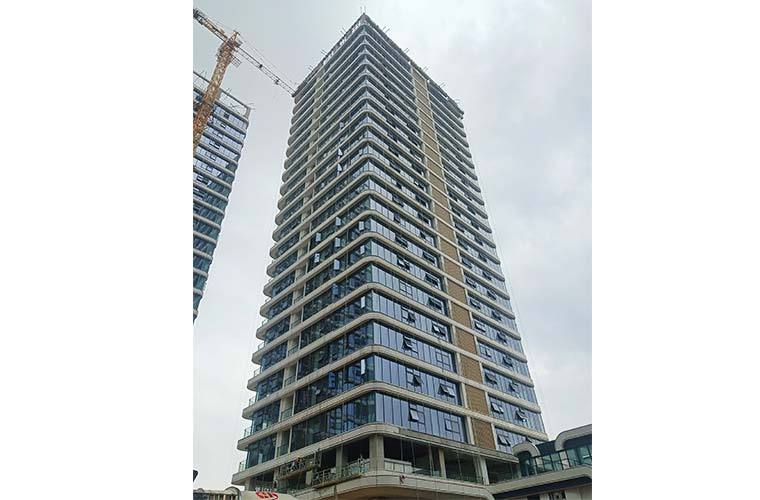

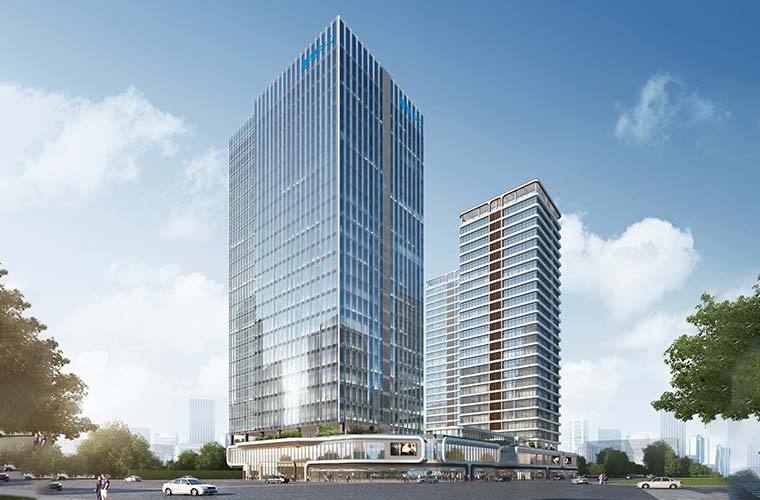

The project is located in Baiyun District, Guangzhou, and involves the glass curtain wall system for a super high-rise office building, covering a total area of approximately 76,000 square meters. The design integrates a steel structure support system with a full glass curtain wall, resulting in a transparent and modern façade that fully showcases the building's premium quality and urban character. This curtain wall system not only meets the building’s functional and durability requirements but also offers excellent daylighting and energy efficiency performance, ensuring long-term stability and comfort.

Building Type	High-rise Office Building
Curtain Wall System	Steel Structure + Glass Curtain Wall
Facade Area	Approximately 76,000 m²
Structural System	Spatial Steel Framework + Glass Unitized Curtain Wall System
Service Life	Over 50 Years
Design Standards	Compliant with national curtain wall codes, with excellent wind and seismic performance

PROJECT TECHNICAL SOLUTION

Structure System

The main structure adopts a spatial steel framework to ensure the stability of the curtain wall and support large spans.

Curtain Wall Materials

High-performance low-emissivity glass is used with a double-layer insulated design, providing excellent thermal insulation and soundproofing, reducing energy consumption and enhancing building comfort.

Surface Treatment

The glass façade features heat treatment and fluorocarbon coating technologies, offering strong weather resistance and ensuring stability and color consistency throughout a 50-year service life.

PROJECT HIGHLIGHTS & ADVANTAGES

Ultra-large-span steel structure system

Provides strong and stable support to meet the structural demands of complex façade shapes and high-rise buildings, ensuring overall safety and durability.

High-efficiency energy-saving glass system

Utilizes low-emissivity glass with a double-layer insulated design to significantly improve building energy performance, reduce heating and cooling consumption, and enhance indoor comfort.

BIM-driven precise construction management

Employs full-process digital control to achieve accurate integration between the curtain wall and main structure, greatly improving construction efficiency and quality control.

Iconic urban architecture

The glass curtain wall design features modernity and transparency, establishing a new landmark in Guangzhou and significantly enhancing the commercial atmosphere and city image.

Why Choose PFM

Specialized Solutions For Your Project

With extensive international EPC experience, we provide PFM customized curtain wall solutions tailored to each project's functional, aesthetic, and architectural requirements—delivering efficient construction, iconic façades, and long-term performance you can trust.

We offer versatile curtain wall solutions tailored to your project's design, functional needs, and budget—flexible and customizable to fit any architectural vision.

A Variety of Combination Schemes
Curtain Wall Structural Systems: Unitized Curtain Wall、Stick (Framing) Curtain Wall、Point-Supported Curtain Wall、Steel Structure-Supported Curtain Wall
Curtain Wall Cladding Materials: Glass Curtain Wall、Aluminum Panel Curtain Wall、Double-Curved Aluminum Panel Curtain Wall、Stone Curtain Wall、Photovoltaic (PV) Curtain Wall
Combined Application Solutions
Steel Structure +	Aluminum Panel Curtain Wall	Strong load-bearing capacity with flexible shaping for complex and iconic facades.	Ideal for large public buildings like stadiums, exhibition centers, and cultural landmarks.
	Glass Curtain Wall	Combines structural strength with high transparency for a sleek, modern look.	Commonly used in high-rise office towers, airports, and commercial complexes.
Aluminum Panel +	Glass	Balances openness and shading while enhancing energy efficiency and visual depth.	Suitable for offices, tech parks, and buildings requiring both aesthetics and performance.
Curtain Wall +	Photovoltaic (PV) Integration	Integrates power generation with the facade, promoting sustainability and energy savings.	Ideal for green buildings, smart campuses, and government or public projects.
Other Customizable Parameters
Panel Thickness & Coating Types	Panel Thickness: Aluminum Panels (2–4 mm), Double-Curved Aluminum Panels (3–5 mm), Stone Panels (Composite 15–30 mm), Glass Panels (Single Layer 6–12 mm) Coating Types: PVDF (Fluorocarbon), Anodized, Powder Coating, Ceramic Coating
Structural Span & Facade Module Division	Unit Panel Width (0.8–1.5 m), Unit Panel Height (2.5–4.5 m), Structural Span (3–12 m+ with steel structure), Panel Division Types (Vertical / Horizontal / Diagonal / Freeform Curves)
Joint Types & Substructure Materials	Joint Types: Hook-on, Interlocking, Back-Bolt, Point-Fixed Substructure Materials: Aluminum Alloy Profiles, Stainless Steel (304/316), Hot-Dip Galvanized Steel
Wind Load & Seismic Performance Ratings	Standard Low-Rise Buildings (0.5–1.5 kPa), High-Rise Buildings (2.0–4.5 kPa), Super High-Rise / Special Buildings (e.g., Airports) (4.5–6.0+ kPa)
