Roof of large-span grid structure Stadium-8.28

Categories	Space Frame Structure
Brand	PFM Architecture Service Provider
Model	8.28
Project Type	Commercial Plaza Skylight Dome
Structural System	Latticed Shell Structure (Welded Spherical Nodes)
Span	32.12 meters
Roofing Material	Steel Structure + Glass Skylight
Design Service Life	50 years
Construction Period	6 months
Update Time	Aug 29,2025

Contact Now

Favorites

Detail Information

Quick Details

ROOF OF LARGE-SPAN GRID STRUCTURE STADIUM

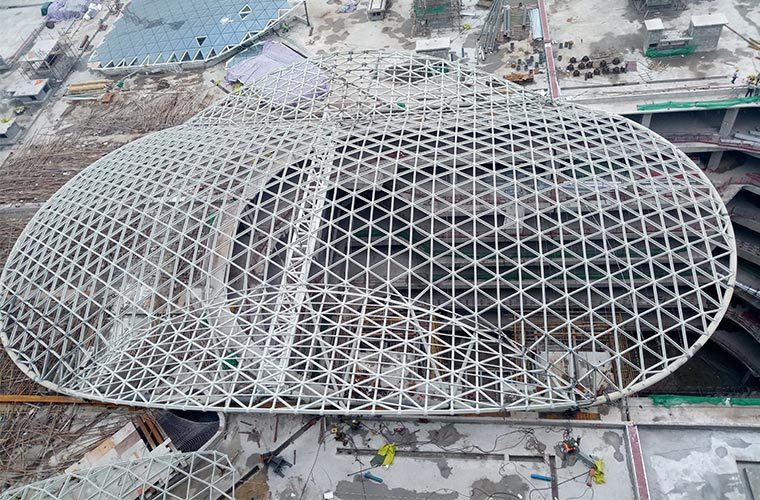

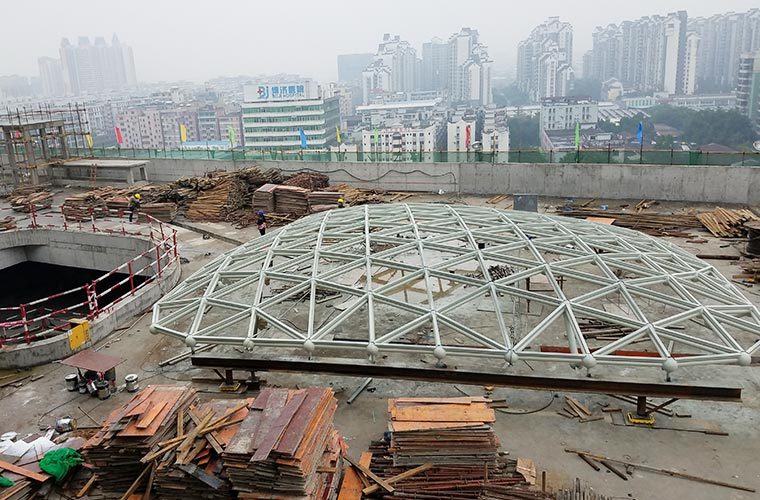

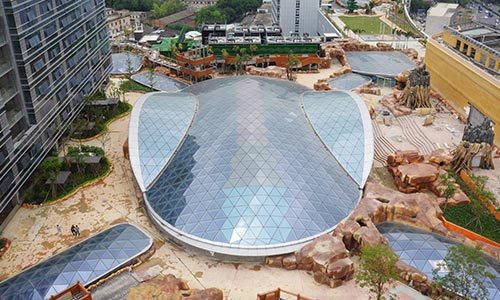

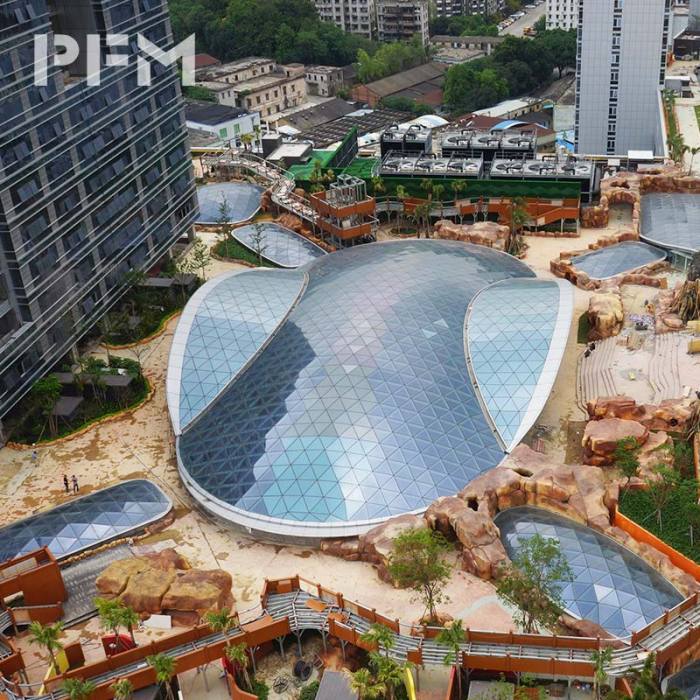

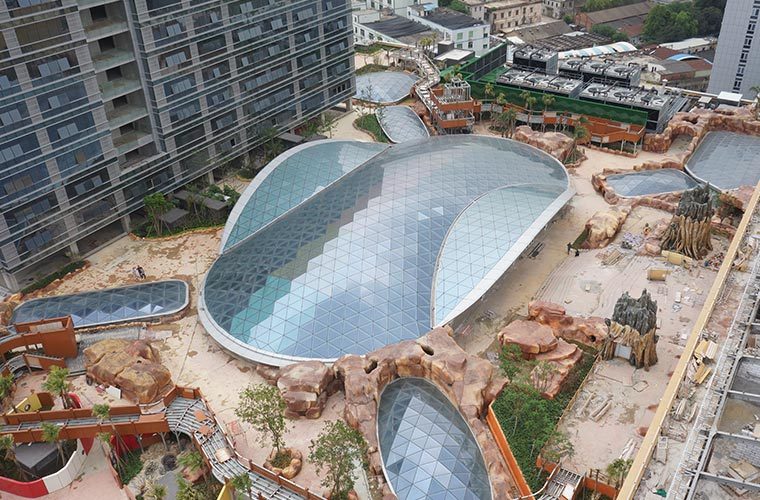

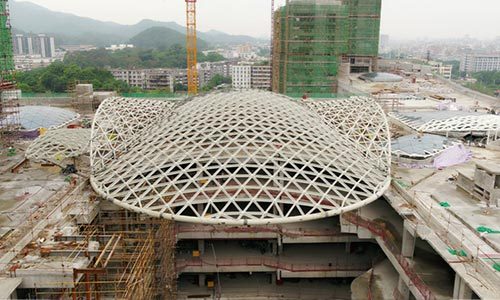

The project is a skylight dome construction located in Baiyun District, Guangzhou, and forms part of a large-scale commercial development. It includes nine smaller skylights and one large central atrium dome. The main atrium skylight features a single-layer welded spherical node latticed shell structure, with a projected area of approximately 4,000 square meters, a span of 32.12 meters, and a length of 63.78 meters. This dome not only fulfills the daylighting requirements of a large interior space but also strikes a perfect balance between aesthetics and functionality, making it one of the key highlights of the commercial plaza.

Project Type	Commercial Plaza Skylight Dome
Structural System	Latticed Shell Structure (Welded Spherical Nodes)
Span	32.12 meters
Roofing Material	Steel Structure + Glass Skylight
Design Service Life	50 years
Seismic Design	Designed for Seismic Intensity 7 with Seismic Isolation Support System
Construction Period	6 months

PROJECT TECHNICAL SOLUTION

Joints & Connections

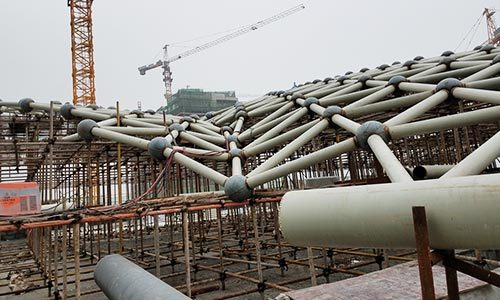

Welded Spherical Nodes: To ensure high precision and reliability, advanced welded spherical node connections are used, offering enhanced structural stability.

Material Selection

Main Material: Q355B high-strength steel, offering excellent load-bearing performance.

Material Selection

Roofing Material: High-transparency hollow glass, providing superior daylighting while offering effective thermal insulation to reduce energy consumption.

PROJECT HIGHLIGHTS & ADVANTAGES

Ample Natural Lighting

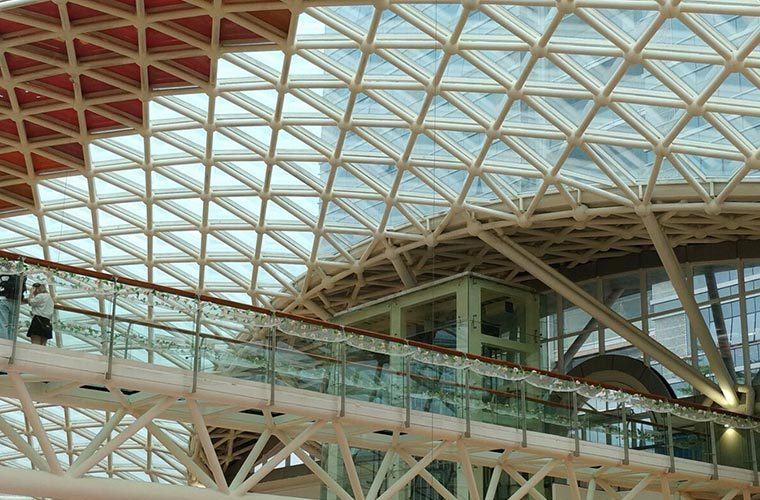

The skylight dome brings natural daylight into the entire commercial plaza, creating a bright and comfortable shopping environment.

Efficient Construction

The use of a welded spherical node shell structure combined with modular prefabrication significantly improves construction efficiency while ensuring high quality.

Structural Innovation

The shell structure maintains stability over large spans while being lightweight and efficient, reducing material waste.

Energy Efficiency & Sustainability

The glass skylight ensures excellent light transmission while providing effective thermal insulation, reducing air conditioning energy consumption.

Why Choose PFM

Specialized Solutions For Your Project

With rich international EPC experience, we offer PFM customized structural and roofing solutions tailored to each project's function, design, and architectural needs—ensuring efficient construction, unique appearance, and reliable performance.

A Variety of Combination Schemes
Combination Scheme		Advantages	Application
Space Frame	Metal Roof	Cost-effective, efficient, long-span	Stadiums, exhibition halls, warehouses
	Glass Roof	Long-span, excellent natural lighting	Transport hubs, commercial atriums, lobbies
Truss	Metal Roof	Flexible design, good daylighting	Museums, shopping malls, greenhouses
	Glass Roof	High load capacity, strong and stable	Heavy-duty workshops, warehouses, venues with hanging systems
Tensile Membrane	ETFE	Unique shape, visually striking	Stadium canopies, landmark building entrances
	Glass Roof	Ultra-lightweight, translucent and energy-saving	Eco-greenhouses, high-end cultural and sports landmarks
steel structure	Metal Roof	Proven technology, highly adaptable	Commercial buildings, offices, schools, traditional industrial facilities
Latticed Shell	Glass Skylight	Natural daylighting, aesthetically pleasing, and modern minimalist design.	Commercial Plazas, Large Shopping Centers
Other Customizable Parameters
Span Range	From 30 to 200 meters, tailored to specific project requirements.
Seismic Rating	Designed to meet seismic intensity levels from 6 to 9.
Material Options	Including Q235/Q355 structural steel, ETFE membrane, weathering steel, and more.
Sustainable Design	Compliant with green building standards, featuring energy-efficient roofing to reduce energy consumption.
Construction Method	Modular prefabrication to shorten construction time and reduce on-site risks.
