Home / All / Curtain Wall / Curved Aluminum Panel Stadium Exterior Curtain Wall for Stadiums

Curved Aluminum Panel Stadium Exterior Curtain Wall for Stadiums

Categories	Curtain Wall
Brand	PFM Architecture Service Provider
Model	Curved Aluminum Panel Stadium Exterior Curtain Wall for Stadiums
Building Type	Large-Scale Sports Stadium
Curtain Wall System	Steel Structure + Curved Aluminum Panel Facade
Facade Area	Approx. 47,000 m²
Primary Structural System	Spatial Steel Framework + Aluminum Panel Subframe
Installation System	Hanging System
Service Life	Over 50 Years
Structural Performance	Wind & Seismic Performance
Design Compliance	International Standards
Update Time	Sep 3,2025

Contact Now

Favorites

Detail Information

Quick Details

LARGE-SPAN GRID POWER PLANT FOR POWER PLANT

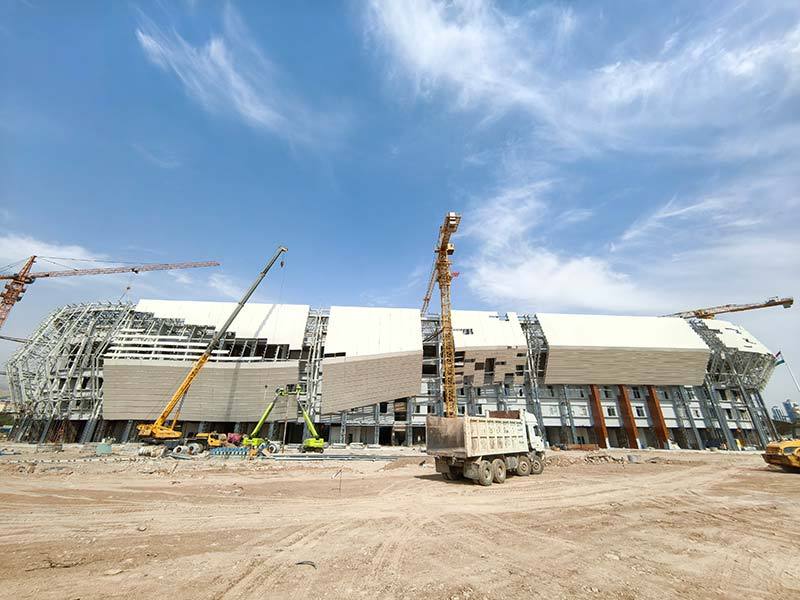

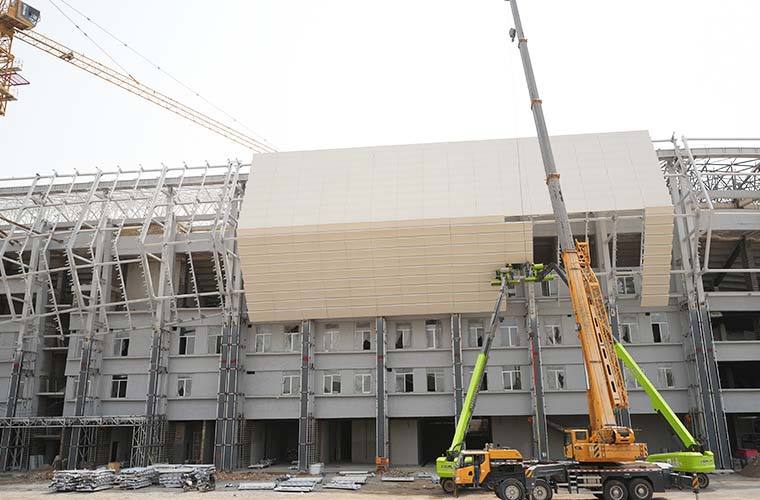

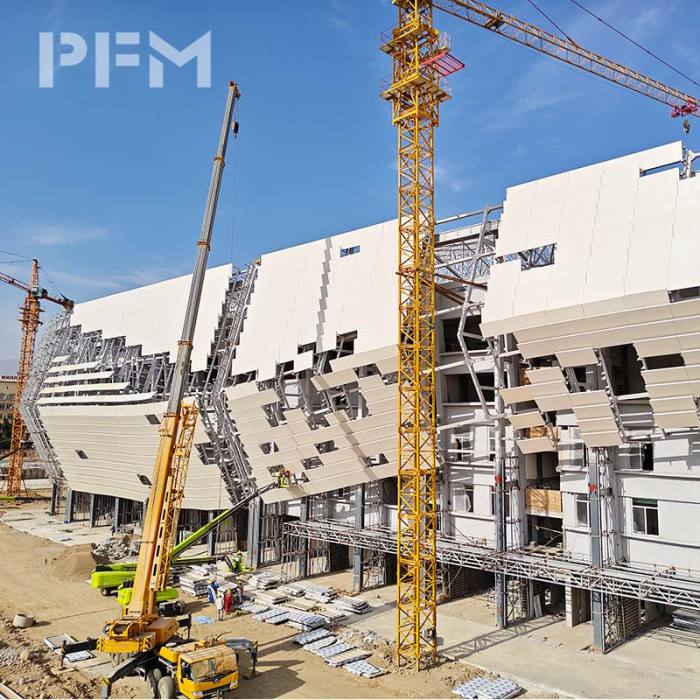

This project involves the exterior curtain wall system of a large-scale stadium located in Dushanbe, the capital city of Tajikistan. Covering a total area of approximately 47,000 square meters, the design integrates a steel structural support system with a customized curved aluminum panel curtain wall solution.

The overall façade features smooth, dynamic lines that convey a strong sense of modernity and movement, reflecting the openness and iconic nature of contemporary sports architecture. The curtain wall not only meets stringent functional and durability requirements, but also showcases a distinctive artistic aesthetic, making the stadium a landmark structure in the region.

Building Type	Large-Scale Sports Stadium
Curtain Wall System	Steel Structure + Curved Aluminum Panel Facade
Facade Area	Approx. 47,000 m² (adjustable based on actual project)
Structural System	Spatial Steel Framework + Aluminum Panel Subframe & Hanging System
Service Life	Over 50 Years
Design Standards	Compliant with International Curtain Wall Engineering Codes, including Wind and Seismic Resistance Requirements

PROJECT TECHNICAL SOLUTION

Structural System

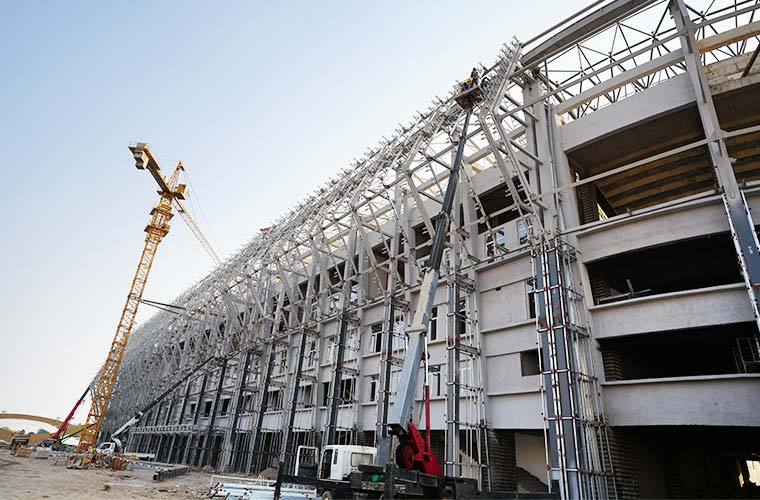

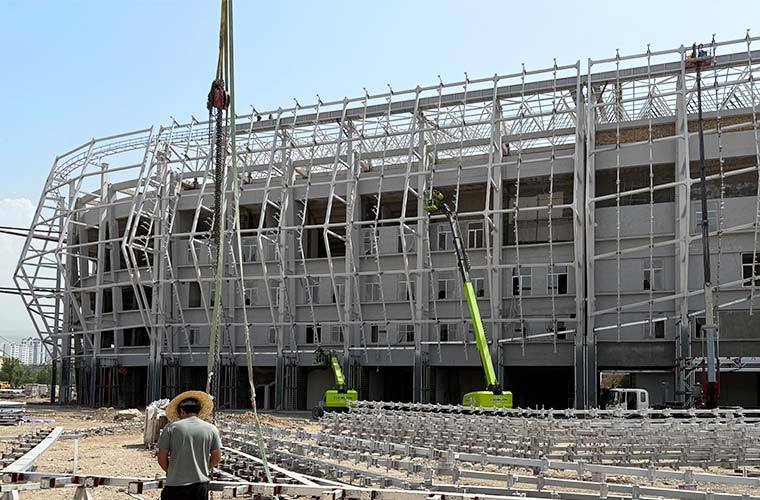

The primary structure adopts a spatial steel framework system, ensuring the stability of the curtain wall and supporting large spans.

The secondary subframe system utilizes aluminum alloy profiles, facilitating ease of installation and maintenance.

Curtain Wall Materials

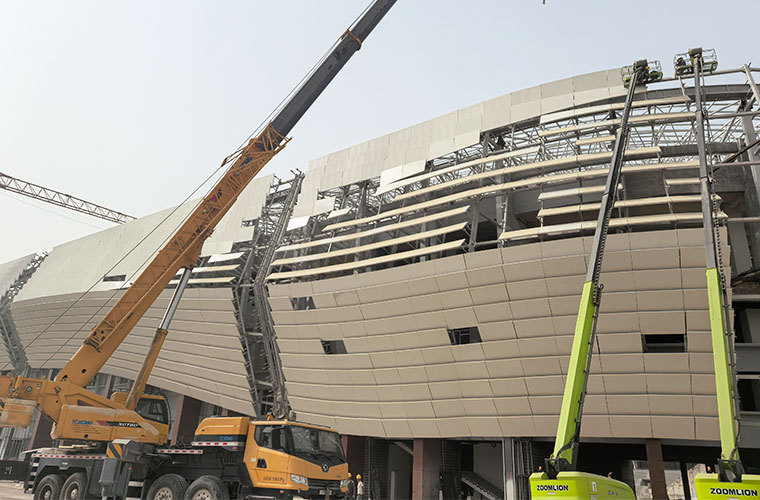

The external cladding features customized 3D curved aluminum panels, with a thickness ranging from 2.5 to 4.0 mm. The surface is finished with fluorocarbon coating, offering excellent weather resistance.

In combination with curved segmentation design, the system ensures a sense of continuity and fluidity across the building façade.

PROJECT HIGHLIGHTS & ADVANTAGES

Extra-Large Span Steel Structure System

Utilizes high-strength spatial steel structures to fully meet the load-bearing and stability requirements of large-span and complex architectural forms, such as stadiums and other irregular buildings.

Freeform Curved Aluminum Panel Design

Breaks away from traditional flat curtain wall concepts to create a smooth, flowing architectural façade, enhancing the building's dynamic form and contemporary aesthetic.

High-Durability Surface Coating

Features fluorocarbon coating and anodizing treatment for exceptional resistance to corrosion and UV exposure. Ensures long-lasting color stability with a service life of over 50 years.

BIM-Enabled Precision Construction

Employs full-process digital modeling and construction coordination through BIM technology, ensuring precise alignment between the curtain wall system and the main structure. Significantly improves construction efficiency and quality control.

Why Choose PFM

Specialized Solutions For Your Project

With extensive international EPC experience, we provide PFM customized curtain wall solutions tailored to each project's functional, aesthetic, and architectural requirements—delivering efficient construction, iconic façades, and long-term performance you can trust.

We offer versatile curtain wall solutions tailored to your project's design, functional needs, and budget—flexible and customizable to fit any architectural vision.

A Variety of Combination Schemes
Curtain Wall Structural Systems: Unitized Curtain Wall、Stick (Framing) Curtain Wall、Point-Supported Curtain Wall、Steel Structure-Supported Curtain Wall
Curtain Wall Cladding Materials: Glass Curtain Wall、Aluminum Panel Curtain Wall、Double-Curved Aluminum Panel Curtain Wall、Stone Curtain Wall、Photovoltaic (PV) Curtain Wall
Combined Application Solutions
Steel Structure +	Aluminum Panel Curtain Wall	Strong load-bearing capacity with flexible shaping for complex and iconic facades.	Ideal for large public buildings like stadiums, exhibition centers, and cultural landmarks.
	Glass Curtain Wall	Combines structural strength with high transparency for a sleek, modern look.	Commonly used in high-rise office towers, airports, and commercial complexes.
Aluminum Panel +	Glass	Balances openness and shading while enhancing energy efficiency and visual depth.	Suitable for offices, tech parks, and buildings requiring both aesthetics and performance.
Curtain Wall +	Photovoltaic (PV) Integration	Integrates power generation with the facade, promoting sustainability and energy savings.	Ideal for green buildings, smart campuses, and government or public projects.
Other Customizable Parameters
Panel Thickness & Coating Types	Panel Thickness: Aluminum Panels (2–4 mm), Double-Curved Aluminum Panels (3–5 mm), Stone Panels (Composite 15–30 mm), Glass Panels (Single Layer 6–12 mm) Coating Types: PVDF (Fluorocarbon), Anodized, Powder Coating, Ceramic Coating
Structural Span & Facade Module Division	Unit Panel Width (0.8–1.5 m), Unit Panel Height (2.5–4.5 m), Structural Span (3–12 m+ with steel structure), Panel Division Types (Vertical / Horizontal / Diagonal / Freeform Curves)
Joint Types & Substructure Materials	Joint Types: Hook-on, Interlocking, Back-Bolt, Point-Fixed Substructure Materials: Aluminum Alloy Profiles, Stainless Steel (304/316), Hot-Dip Galvanized Steel
Wind Load & Seismic Performance Ratings	Standard Low-Rise Buildings (0.5–1.5 kPa), High-Rise Buildings (2.0–4.5 kPa), Super High-Rise / Special Buildings (e.g., Airports) (4.5–6.0+ kPa)

MORE PROJECTS

30,000 Seats National FIFA Stadium

73,000–75,000 Seats Guangzhou World-Class Football Stadium

Nansha Comprehensive Culture and Sports Complex

Nansha Stadium Upgrade and Renovation

Qingyuan Olympic Sports Center

Zhuhai Sports Center Renovation Phase I Project

Our Supply Capacity

Design Capability

A specialized team skilled in complex curved façades and structural systems provides precise modeling, structural analysis, and optimized solutions for safety, aesthetics, and cost-efficiency.

Procurement Capability

Long-term partnerships with top suppliers of aluminum panels, glass, stone, and system components ensure flexible material selection, consistent quality, and on-time delivery.

Construction Capability

An experienced international team delivers high-standard installation of large-scale, irregular, and complex façades with proven project execution.

With our integrated Design–Procurement–Construction model, PFM delivers dependable curtain wall solutions that reduce risks and control costs.
