Large-span Truss Structure Pedestrian Bridge for Commercial Plaza

Categories	Roof Structure System
Brand	PFM Architecture Service Provider
Project Type	Commercial Plaza Pedestrian Bridges
Structural System	Large-span truss structure (diagonal trusses)
Span	77.9 meters & 86.4 meters
Roofing Material	Steel structure with glass curtain wall system
Design Service Life	50 years
Seismic Design	Seismic Intensity 8, seismic isolation bearing
Construction Period	10 months
Update Time	Aug 31,2025

Contact Now

Favorites

Detail Information

Quick Details

ROOF OF LARGE-SPAN GRID STRUCTURE STADIUM

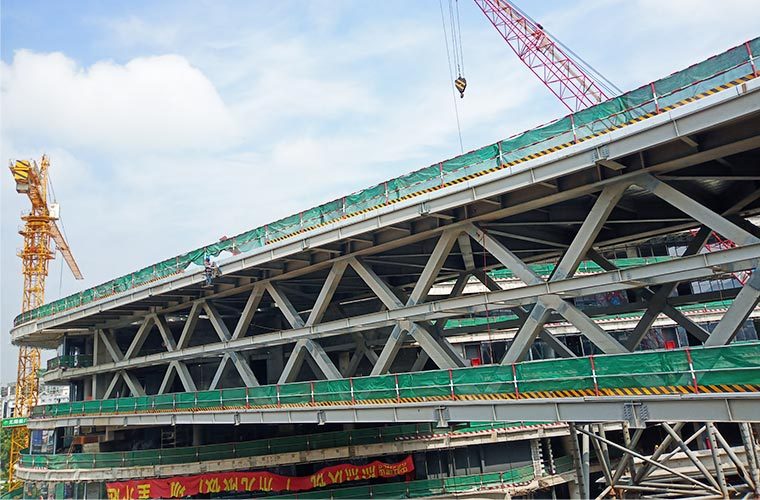

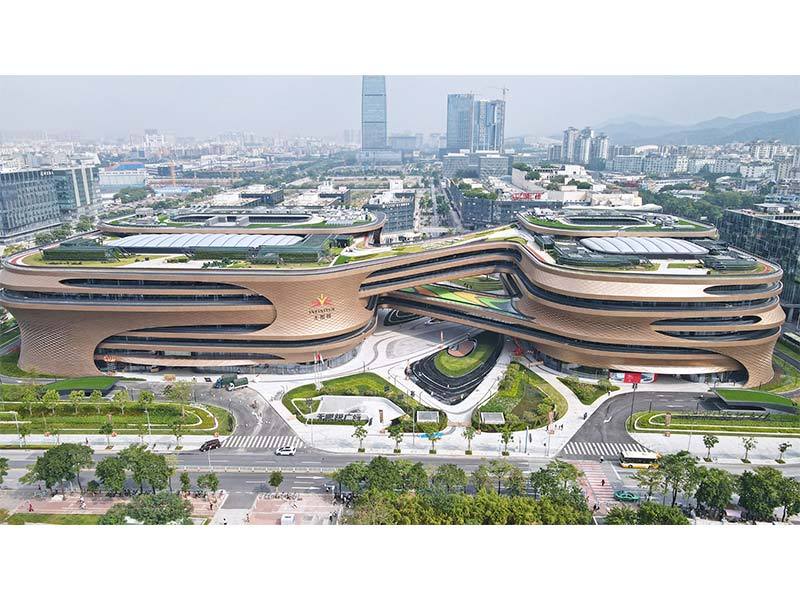

The Infinite Plaza in Guangzhou, located in Baiyun New City, Baiyun District, Guangzhou, is an iconic modern commercial complex. The project consists of two towers, Tower A and Tower B, which are approximately 60 meters apart. To achieve functional connectivity and architectural aesthetics, a multi-level large-span diagonal pedestrian bridge is set between the two towers:

3rd-floor bridge: 77.9 meters span, 17 meters width, total weight approximately 800 tons.

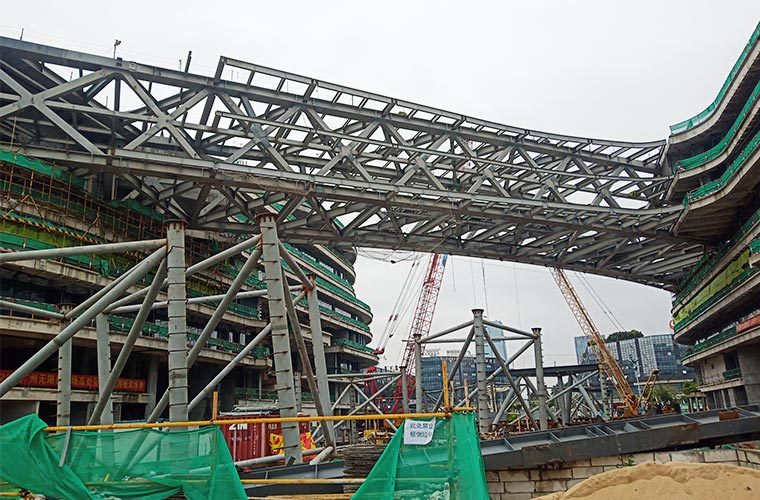

6th and 7th-floor bridge: 86.4 meters span, 20.5 meters width, total weight approximately 1500 tons.

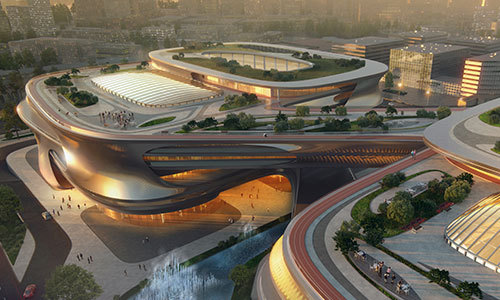

The bridges utilize a large-span truss structure system, not only achieving efficient spatial connectivity but also becoming a prominent visual focal point of the plaza, showcasing PFM's expertise in complex truss structure engineering.

Project Type	Commercial Plaza Pedestrian Bridges
Structural System	Large-span truss structure (diagonal trusses)
Span	77.9 meters & 86.4 meters
Roofing Material	Steel structure with glass curtain wall system
Design Service Life	50 years
Seismic Design	Designed for Seismic Intensity 8, with seismic isolation bearing system
Construction Period	10 months

PROJECT TECHNICAL SOLUTION

Joints & Connections

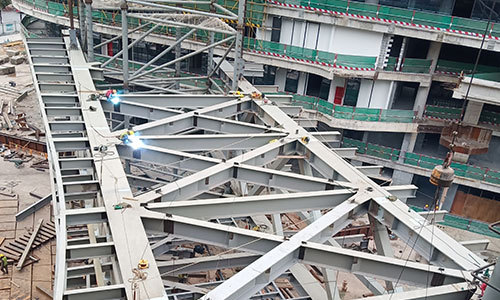

Steel Truss Diagonal Structure:

Significantly enhances overall stability and load-bearing capacity, meeting the requirements for large-span and high-rise connections.

Material Selection

Main Structure: Q355B steel, known for its strong bending resistance and load-bearing capacity.

Material Selection

Roofing Material: Glass curtain wall combined with steel structure, balancing daylighting, aesthetics, and functionality.

PROJECT HIGHLIGHTS & ADVANTAGES

Super Large Span

Achieves a 86.4-meter column-free span, meeting the functional connectivity needs of two super high-rise buildings.

Structural Stability

The diagonal truss and multi-joint design ensure long-term stability of the bridge under complex loads and wind-induced vibrations.

Efficient Construction

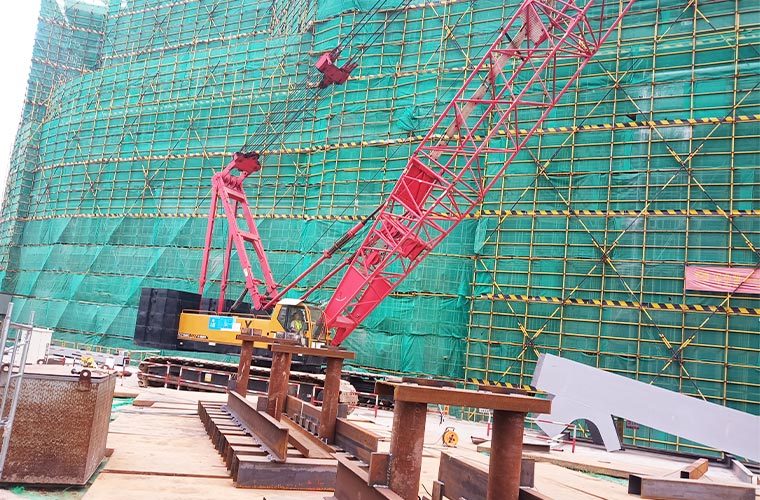

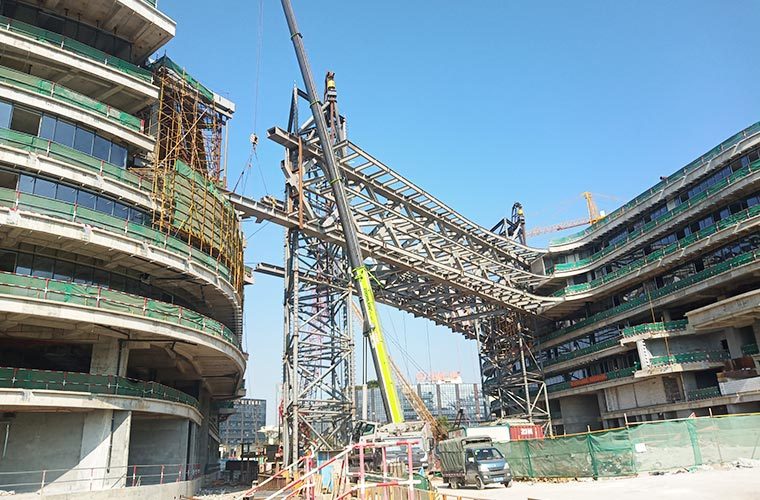

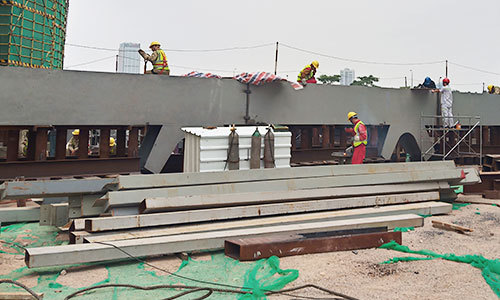

Utilizes segmented prefabrication and overall lifting techniques to minimize construction difficulty and reduce safety risks.

Architectural Landmark

The pedestrian bridge becomes the iconic spatial node of the commercial plaza, enhancing the overall recognition and value of the architectural complex.

Aesthetic & Functional Integration

The combination of glass and steel structure not only ensures structural performance but also adds a modern architectural aesthetic to the bridge.

Why Choose PFM

Specialized Solutions For Your Project

With rich international EPC experience, we offer PFM customized structural and roofing solutions tailored to each project's function, design, and architectural needs—ensuring efficient construction, unique appearance, and reliable performance.

A Variety of Combination Schemes
Combination Scheme		Advantages	Application
Space Frame	Metal Roof	Cost-effective, efficient, long-span	Stadiums, exhibition halls, warehouses
	Glass Roof	Long-span, excellent natural lighting	Transport hubs, commercial atriums, lobbies
Truss	Metal Roof	Flexible design, good daylighting	Museums, shopping malls, greenhouses
	Glass Roof	High load capacity, strong and stable	Heavy-duty workshops, warehouses, venues with hanging systems
Tensile Membrane	ETFE	Unique shape, visually striking	Stadium canopies, landmark building entrances
	Glass Roof	Ultra-lightweight, translucent and energy-saving	Eco-greenhouses, high-end cultural and sports landmarks
steel structure	Metal Roof	Proven technology, highly adaptable	Commercial buildings, offices, schools, traditional industrial facilities
Latticed Shell	Glass Skylight	Natural daylighting, aesthetically pleasing, and modern minimalist design.	Commercial Plazas, Large Shopping Centers
Other Customizable Parameters
Span Range	From 30 to 200 meters, tailored to specific project requirements.
Seismic Rating	Designed to meet seismic intensity levels from 6 to 9.
Material Options	Including Q235/Q355 structural steel, ETFE membrane, weathering steel, and more.
Sustainable Design	Compliant with green building standards, featuring energy-efficient roofing to reduce energy consumption.
Construction Method	Modular prefabrication to shorten construction time and reduce on-site risks.
